Data Acquisition Circuit Board M8123X

- What is Data Acquisition Circuit Board M8123X?
Most SRI load cell models have millivolt range low voltage outputs (unless AMP or DIGITAL are denoted). If your PLC or DAQ require digital output, or if you do not have a data acquisition system yet but would like to read digital signals from your controller or computer, a data acquisition interface box or a circuit board is required.

The OEM version of the Data Acquisition Circuit Board M8123X has the similar functions to the interface box M812X but is particularly suitable for applications with limited space and high integration requirements. M8123X provides voltage excitation, noise filtering, data acquisition, signal amplification, and signal conversion. The circuit board amplifies the signal from mv/V to V/V and converts analog output to digital output. It has a low-noise instrumentation amplifier and 24-bit ADC (analog to digital convertor). Resolution is 1/5000~1/10000FS. Sampling rate up to 2KHZ.

- What are the communication method options?
● EtherCAT
● RS232
● CAN

- M8123 Manual.pdf

Model Table

Model Illustration

Electrical Interface

Dimensions & Software

M8123B2  Data-Acquisition-Circuit-Board-M8123X-1 - 6-channel analog signal input
- low-noise instrumentation amplification
- Power supply DC24V, max.250mA
- EtherCAT (dual channel, can be cascaded), RS232, CAN communication
- 24-bit A/D conversion, the highest sampling rate is 2KHZ
- Resolution1/5000~1/40000FS
- Dimension:Outer dimension 54mm; Thickness 13.3mm
- iDAS RD:Debug software, display real-time sampling curve
- EtherCAT device description file*.xml

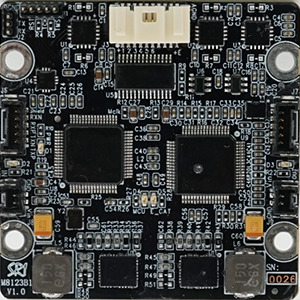

M8123B1 Data-Acquisition-Circuit-Board-M8123X-4 - 6-channel analog signal input
- low-noise instrumentation amplification
- Power supply DC24V, max.250mA
- EtherCAT (dual channel, can be cascaded), RS232
- 24-bit A/D conversion, the highest sampling rate is 2KHZ
- Resolution 1/5000~1/10000FS
- Dimension:50(l)*50(w)*13.3(h)mm
- iDAS RD:Debug software, display real-time sampling curve
- EtherCATdevice description file*.xml
M8123D Data-Acquisition-Circuit-Board-M8123X-3 - 6-channel analog signal input
- low-noise instrumentation amplification
- Power supply DC24V, max.250mA
- EtherCAT (Single channel, not cascaded), RS232
- 24-bit A/D conversion, the highest sampling rate is 2KHZ
-
- Resolution 1/5000~1/10000FS
- not connecter
- Dimension:30(l)*40(w)*11(h)mm
- iDAS RD:Debug software, display real-time sampling curve
- EtherCATdevice description file*.xml
M8132B1 Data-Acquisition-Circuit-Board-M8123X-2 - 6-channel analog signal input
- low-noise instrumentation amplification
- Power supply DC24V, max.250mA
- RS232, CAN communication
- 24-bit A/D conversion, the highest sampling rate is 2KHZ
- Resolution1/5000~1/40000FS
- Dimension:74.5(l)*35(w)*11(h)mm
- iDAS RD:Debug software, display real-time sampling curve
