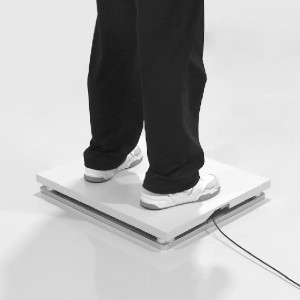

M3612X series: 6 axis force platform

M3612X series is a high-performance 6 axis force platform for motion analysis. Applying the same advanced strain gauge technology utilized in our 6 axis loadcells, SRI force platforms provide accurate measurements in all forces and moments from the test subject simultaneously.

Send email to us

Product Detail

Product Tags

Description

M3612X 6 axis force platform capacity ranges from 1250 to 10000N and 500 to 2000Nm. Overload capacity 150%. It is suitable for walking, running, jumping, swinging and other biomechanics analyses that requires 6 DoF force measurements. With this tool, sport researchers and coaches can quickly collect and analyze data from athletes, improving training efficiency and strategies.

SRI also provides customization services for 6 axis force platform. Contact us with your requirements.

Model Selection

SI (Metric)

US (Standard)

SI (Metric)

Model	Description	Measurement Range(N/Nm)				Dimension (mm)			Weight	SPEC SHEETS
Model	Description	FX, FY	FZ	MX, MY	MZ	L	W	H	(Kg)	SPEC SHEETS
M3612A	6 AXIS FORCE PLATE 400 X 600MM	1250	2500	500	500	400	600	100	36.00	Download
M3612A1	6 AXIS FORCE PLATE LOAD CELL400 X600 MM	1250	2500	500	500	400	600	100	36.00	Download
M3612B	6 AXIS FORCE PLATE 400 X 600MM	2500	5000	1000	1000	400	600	100	36.00	Download
M3612B1	6 AXIS FORCE PLATE 400 X 600MM	2500	5000	1000	1000	400	600	100	36.00	Download
M3612BT	6 AXIS FORCE PLATE 400 X 600MM, COUPLED	2500	5000	1000	1000	400	600	100	36.00	Download
M3612C	6 AXIS FORCE PLATE 400 X 600MM	5000	10000	2000	2000	400	600	100	36.00	Download
M3612G	6 AXIS FORCE PLATE 400 X 600MM	2500	5000	800	600	400	600	134	46.00	Download
M3612M	6 AXIS FORCE PLATE 400 X 600MM	10000	10000	6000	6000	400	600	134	49.00	Download
M3612M1	6 AXIS FORCE PLATE 400 X 600MM	10000	10000	6000	6000	400	600	134	49.00	Download
M3612Q1P	6 AXIS FORCE PLATE 300 X 300MM	50000	50000	NA	NA	500	600	35	23.00	Download
M3612T1	6 AXIS FORCE PLATE 500X600MM LIGHT WEIGHT 5KN ETHERNET OUTPUT	2500	5000	1100	500	500	600	35	10.20	Download
M3612T1F	6 AXIS FORCE PLATE 500X600MM LIGHT WEIGHT 5KN,ETHERNET OUTPUT	1400	6000	2400	500	500	600	45.9	24.00	Download
M3613B	6 AXIS FORCE PLATE 400 X 600MM + WINDOW	2500	5000	1000	1000	400	600	120	40.10	Download
M3614BT	6 AXIS FORCE PLATE 450 X 450MM, COUPLED	2500	5000	800	600	450	450	100	30.00	Download
M36F6060A1	6 AXIS FORCE PLATE 600X600MM LIGHT WEIGHT 5KN ETHERNET OUTPUT	2500	5000	1100	500	600	600	36.2	12.40	Download

US (Standard)

Model	Description	Measurement Range(lbf/lbf-in)				Dimension (in)			Weight
Model	Description	FX, FY	FZ	MX, MY	MZ	L	W	H	(lb)
M3612A	6 AXIS FORCE PLATE	275	550	4425	4425	15.6	23.4	3.9	79.2	Download
M3612B	6 AXIS FORCE PLATE	550	1100	8850	8850	15.6	23.4	3.9	79.2	Download
M3612B1	6 AXIS FORCE PLATE	550	1100	8850	8850	15.6	23.4	3.9	79.2	Download
M3612C	6 AXIS FORCE PLATE	1100	2200	17700	17700	15.6	23.4	3.9	79.2	Download
M3612G	6 AXIS FORCE PLATE	550	1100	7080	7080	15.6	23.4	5.23	101.2	Download
M3612M	6 AXIS FORCE PLATE	2200	2200	53100	53100	15.6	23.4	5.23	107.8	Download
M3612M1	6 AXIS FORCE PLATE	2200	2200	53100	53100	15.6	23.4	5.23	107.8	Download
M3613B	6 AXIS FORCE PLATE + WINDOW	550	1100	8850	8850	15.6	23.4	4.68	88.22	Download
M3612BT	6 AXIS FORCE PLATE , COUPLED	550	1100	8850	8850	15.6	23.4	3.9	79.2	Download
M3614BT	6 AXIS FORCE PLATE , COUPLED	550	1100	7080	7080	17.55	17.55	3.9	66	Download
