Double Output Shaft Force-controlled Grinding Machine

Integrated iGrinder® axial force control. High-speed spindle double output shaft automatic abrasive replacement.

Floating Force Control

Integrated iGrinder®, superior floating force control function, better grinding effect, more  convenient debugging, guaranteed more stable production line process.

Gravity Compensation

The robot can ensure constant grinding pressure regardless grinding in any posture. Double-abrasive design doubles the return on investment Both ends of the main shaft come out of the shaft, one end is equipped with a grinding plate, and the other end is equipped with a wire drawing wheel; one main shaft solves two processes, and the return on investment is doubled.

Automatic Tool

Change Integrated automatic tool change function. The production line is more flexible. The grinding disc is replaced automatically, and the wire drawing wheel is replaced manually.

High-speed spindle

2.2kw,8000rpm spindle, high power and high speed. Drives sandpaper discs, louvers, thousand impellers, grinding wheels, milling cutters, etc.

Natural air cooling

The main shaft is naturally air-cooled, no additional cooling device is required.


Product Detail

Product Tags

Description

Floating Force Control

Integrated iGrinder®, superior floating force control function, better grinding effect, more  convenient debugging, guaranteed more stable production line process.

Gravity Compensation

The robot can ensure constant grinding pressure regardless grinding in any posture. Double-abrasive design doubles the return on investment Both ends of the main shaft come out of the shaft, one end is equipped with a grinding plate, and the other end is equipped with a wire drawing wheel; one main shaft solves two processes, and the return on investment is doubled.

Automatic Tool

Change Integrated automatic tool change function. The production line is more flexible. The grinding disc is replaced automatically, and the wire drawing wheel is replaced manually.

High-speed spindle

2.2kw,8000rpm spindle, high power and high speed. Drives sandpaper discs, louvers, thousand impellers, grinding wheels, milling cutters, etc.

Natural air cooling

The main shaft is naturally air-cooled, no additional cooling device is required.

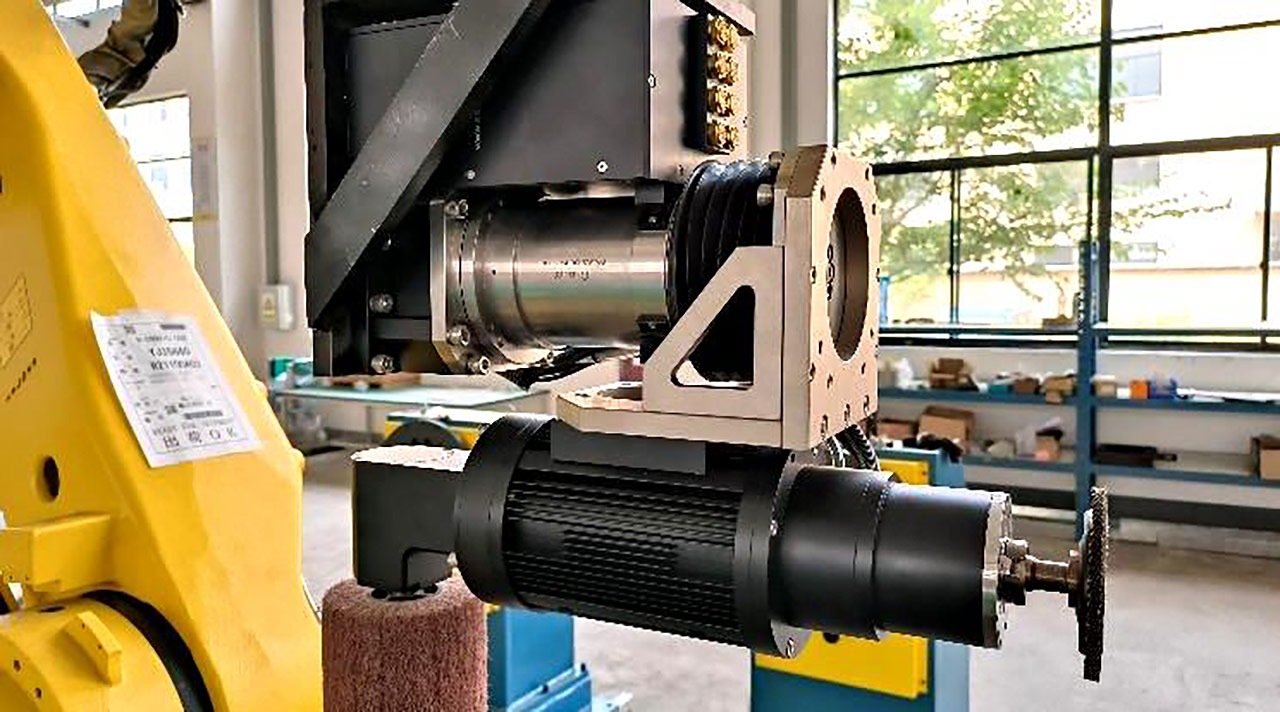

M5308S35A1 Double Output Shaft Force-controlled Grinding Machine

Weight Force Range  Accuracy  Floating Range Displacement Measuring Accuracy
26kg 0 – 500N +/-3N 0 – 25mm 0.01mm
Double-Output-Shaft-Force-controlled-Grinding-Machine
